5KV, 6KV Digital Surge Tester

Features

• Job work management area for motor data reference
• Dual feature to either store and compare against master waveform or compare between two windings simultaneously
• Colour coded waveforms for better analysis
• Store, print and recall surge test waveforms & reports
• Graphical and numerical representation of %error between the waveforms
• Automatic report generation in MS word
• Target voltage indication based on motor ratings

Specifications of PC

• 8 inch touch screen display
• Industrial grade CPU (Intel Dual Core)
• 4GB RAM / 500GB hard disk
• Windows 7 / MS Office / Anti Virus
• Dust proof / Water resistant / 0-60O C
• 2 USB ports
• Wireless keyboard & mouse

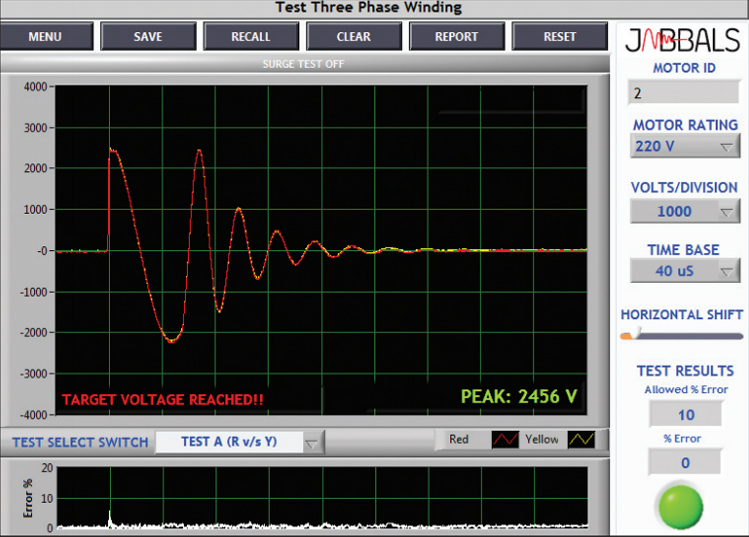

Software Indicator and Controls

• Adjustable Volts/div and Timebase
• Colour coded waveform display
• Surge test peak voltage indicator
• Graphical and numerical %error display
• Target voltage indicator based on motor rating
• Test result lamp indicator
• Save, recall and print waveforms & reports

Test Specifications	D-5K	D-6K
Test Voltage	5,000V	6,000V
Pulse Current	330 Amps (Max)	400 Amps (Max)
Pulse Energy	1.0J	1.44J
Capacitance	0.04 µF	0.04µF
Impulse Rise Time	0.1 µS	0.1 µS
Impulse Repetition Rate	1.0 Hz (1 Pulse per second)	1.0 Hz (1 Pulse per second)
Min. Test Object Inductance	24 µH	24 µH
Display	8 inch touch screen colour display
Vertical Senstivity	500V, 1000V, 2000V, 5000V
Sweep	Variable (10 µS – 10 mS)
Operating Voltage & Frequency	230 V (50/60 Hz) or 110 V (60 Hz)
Power consumption	25 Watts (Max)
Dimensions	310 (w) x 212 (H) x 320 (D) mm Approx
Weight	12 Kgs Approx
